bursting strength tester

Switching between multiple language operating systems (Chinese and English, with other languages customizable)

Test data is automatically stored and can be queried. Equipped with a micro printer, it allows for quick printing of test results

Safe and reliable

Well-crafted

Custom design

Quality Assurance

pop-up formWhatsAppCopy WeChat

Free service hotline 139-2293-2385

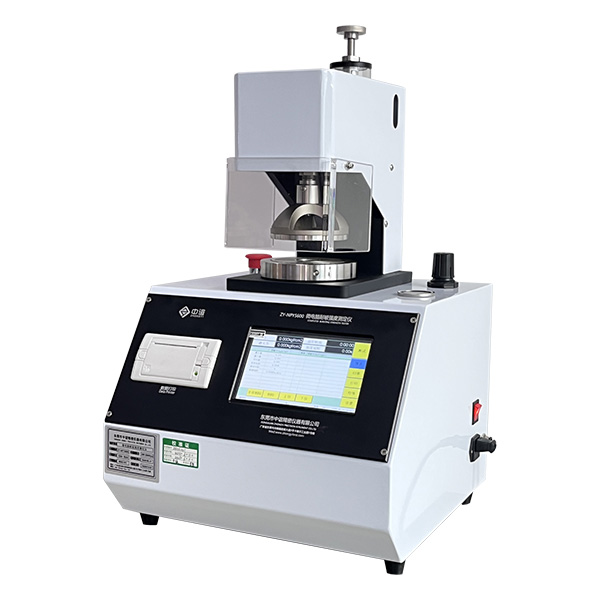

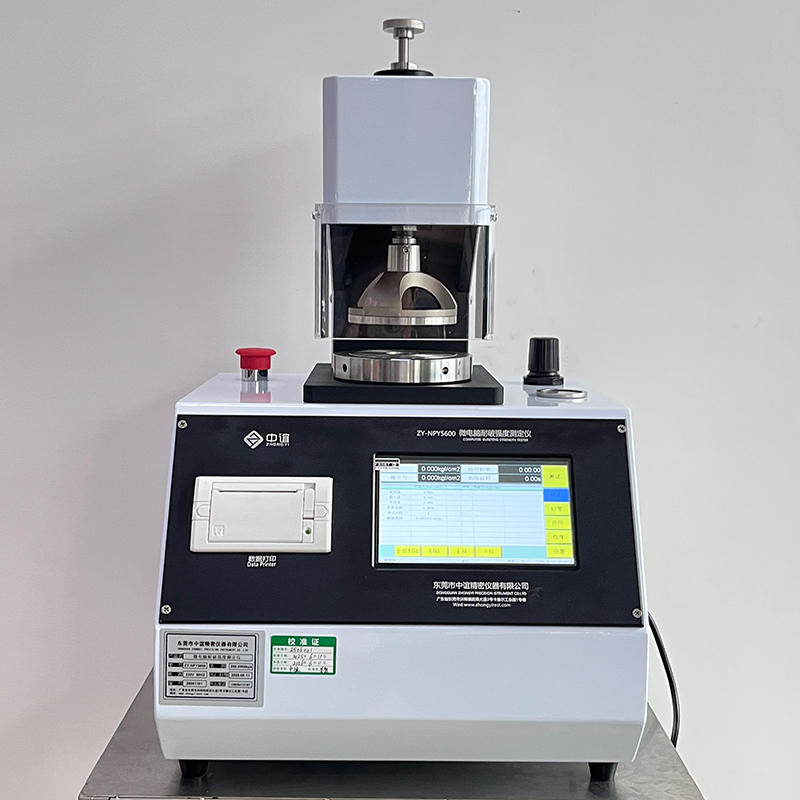

Product introduction of fully automatic bursting strength tester:

The bursting strength tester is a professional instrument for testing the bursting strength performance of various types of paper and paperboard. Its various performance parameters and technical indicators comply with standards such as ISO2759 "Paperboard - Determination of Bursting Strength", GB1539 "Method for Determining the Bursting Strength of Paperboard", ISO2758 "Paper - Determination of Bursting Strength", and GB454 "Method for Determining the Bursting Strength of Paper". It is suitable for testing the bursting strength of various types of paper and paperboard packaging materials, as well as non-paper materials such as silk and cotton cloth.

Test standard：

ISO2759、GB1539、ISO2758、GB454

Main technical parameters of the instrument：

Model	ZY-NPY5600
Measurement range	Low-pressure type：5~1400Kpa；high-pressure type：150~5600Kpa
Resolution	0.01Kpa
Accuracy	≤±0.5%
Deformation error	≤1mm
Concentricity of upper and lower plates	≤0.25mm

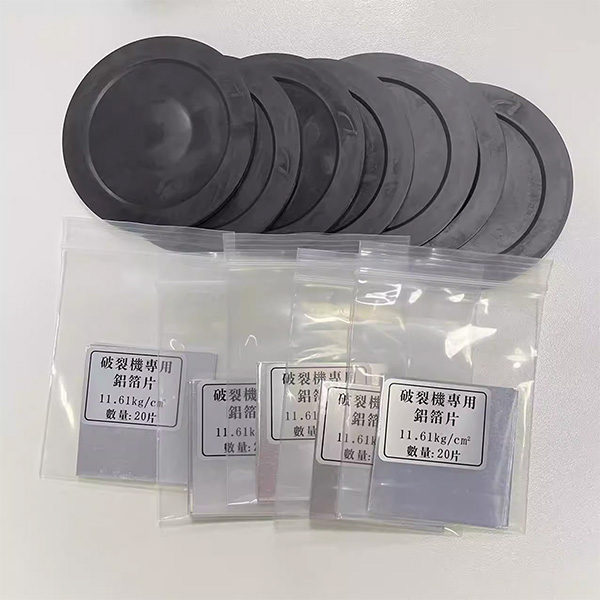

Rubber membrane tympanic pressure	(9±0.2)mm/（30±5)KPa
Oil delivery speed	175±5ml/min

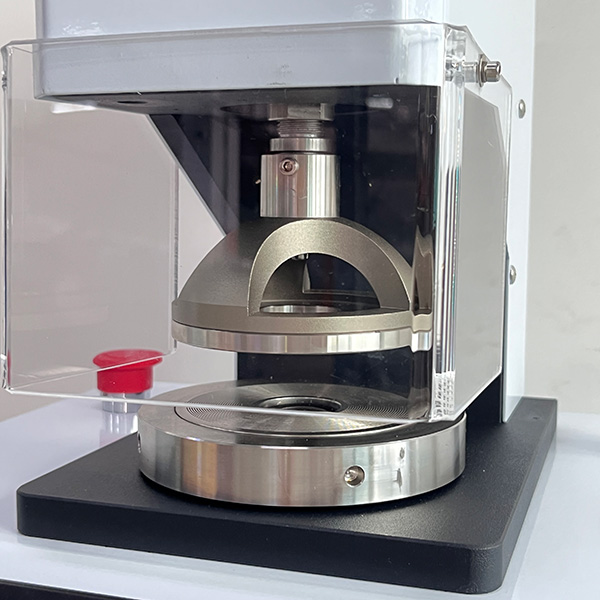

Clamping plate diameter	(31.5±0.1)mm
Clamping force	10Kpa~1200Kpa (Modifiable)
Unit conversion	Kg/cm²、Kpa、Lbf/in²
Print output	Modular integrated thermal printer
Human-machine interface	7.0in touch screen control（Switchable between Chinese and English）
Overall dimensions	550×450×530（mm）
Power supply	AC220V±22V，50Hz
Weight	50kg

Application areas of bursting strength tester：

Paper, kraft paper, white board cardstock, gray board paper, single-layer cardboard，Corrugated paper, double-sided coated paper, toilet paper, aluminum foil and copper foil, cigarette boxes, color boxes, etc.; High-pressure type is suitable for: cardboard boxes, paperboard, corrugated board, color boxes, cigarette packs, beer crates, shoe boxes, milk cartons/boxes, plastic hollow boards, leather, fabrics, non-woven fabrics, high-strength aluminum foil and copper foil, etc.
