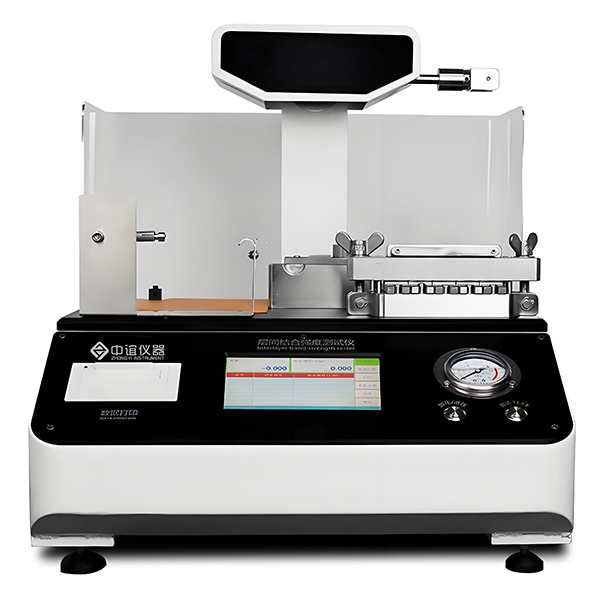

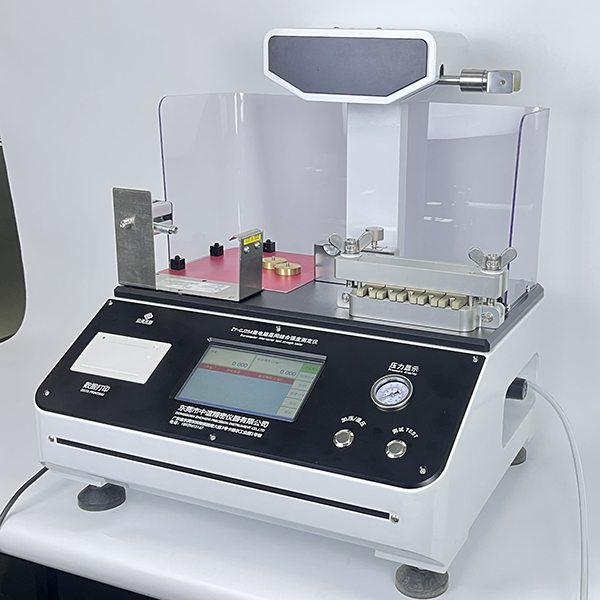

Product introduction of interlayer bonding strength tester：
The interlayer bonding strength tester (also known as the paper and paperboard internal bonding strength tester) measures the internal bonding strength of various paper and paperboard materials according to TAPPI T569 and ISO 16260 methods. For example, the interlayer peel strength test of industrial paper such as electrical insulation cardboard, yarn tube paper, and grey cardboard is suitable for paper mills, scientific research institutions, and quality inspection departments.
working principle：

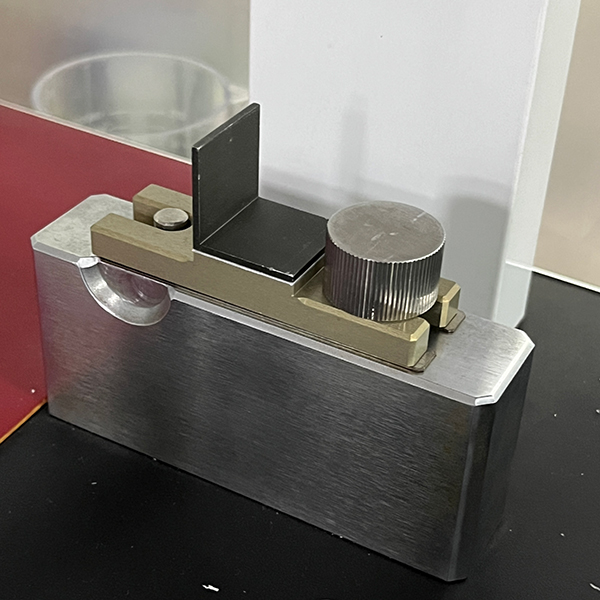

The combination of double-sided tape, sample, and double-sided tape forms a sandwich structure, which is pressed between a metal anvil and an aluminum block. The inner surface of the upper part of the aluminum block is hit with a pendulum, causing the aluminum block to flip and damage the sample in the Z direction. Calculate the energy absorbed by the sample during the destruction process by measuring the position of the swing, expressed in J/m².
Technical Specifications：
| Model | ZY-CJ254 |
| Specimen size | 25.4mm×25.4mm |
| Sampling number | 25.4×128mm, 5pcs / time |
| Specimen thickness | (0.1~5) mm |
| Impact angle | 90° |
| Release way | Automatic release |
| Testing range | 0~100)J/M2(A range: (0~500)J/M2, B range: (500~1000)J/M2) |
| Indication error | A range: ±1J/M2、B range: ±2J/M2 |
| Accuracy | 0.001J/M2 |
| Unit | J/M2, lbf/in2 、 interchange |
| Resolution | 0.001lbf/in2, 5000 pulse high precision encoder |
| Human-computer interface | 7 inch touch screen control |

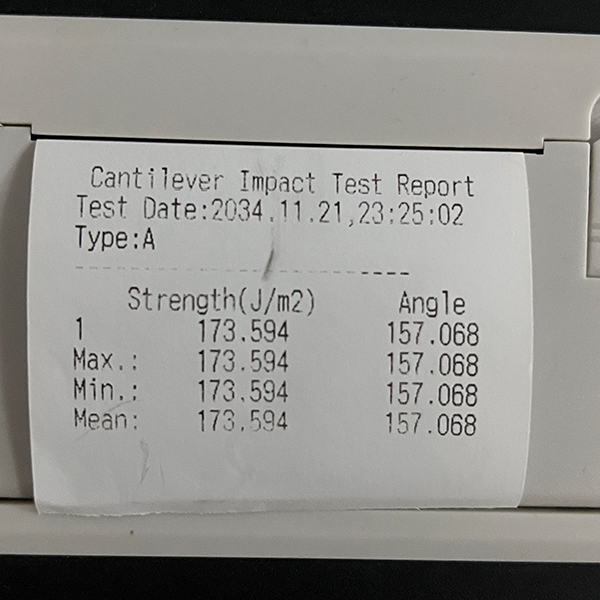

| Printing | Modular integrated thermal printer |
| Dimension | 500m×400mm×650mm |
| Weight | ≈70KG |
Product Features：
- 7in large touch screen display, free switching between Chinese and English languages,
- Pressure adhesive sample, pressure can be automatically adjusted;
- It has the function of testing data statistics and processing;
- The whole machine has strong rigidity and stable structure, avoiding energy loss caused by vibration during testing;

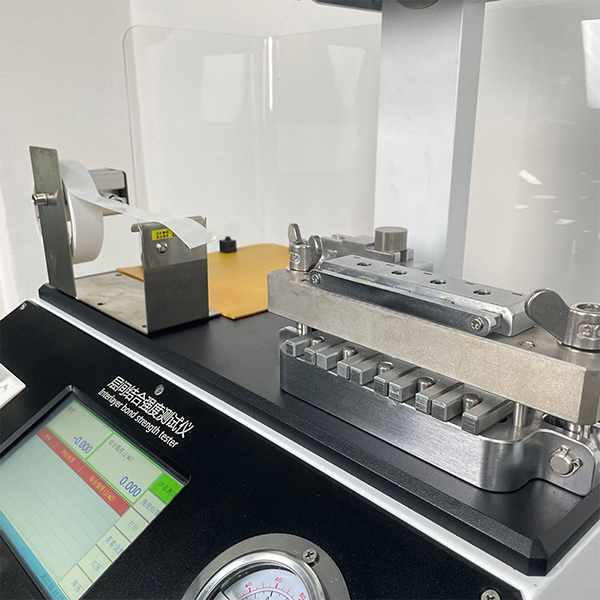

- Reliable sample clamping and positioning to reduce errors caused by sample sampling;
- Optional computer connection, automatically drawing real-time test data curve chart (optional)
- Special 5-level calibration tool kit (optional)
- Adopting a modular integrated thermal printer, it is easy to install and has low malfunctions.
- Modern concept design of mechatronics integration, compact structure, beautiful appearance, and easy maintenance;
Scope of application:
Corrugated paper: cohesion testing of corrugated base paper, box board paper, hanging paper and other paper
Yarn tube paper: testing the interlayer bonding strength of paper tube paper, yarn tube paper, and kraft paper
Cardboard: testing the interlayer bonding strength of kraft paper, white paper, and whiteboard paper
Insulation paper: testing of interlayer bonding strength of electrical paperboard and electrical insulation paperboard
Gray cardboard: testing of interlayer bonding strength of various gray cardboard, cardboard, and composite cardboard
Packaging box: testing of interlayer bonding strength for color boxes, cigarette boxes, and packaging boxes
Specialty paper: rust proof paper, rice paper, banknote paper, dust-free paper, oil resistant paper, frosted paper, glass cardboard, etc
Other: Testing of interlayer bonding strength for industrial paper that requires processing operations
