Microcomputer compression strength tester

Introduction to electronic compression strength testing machine:

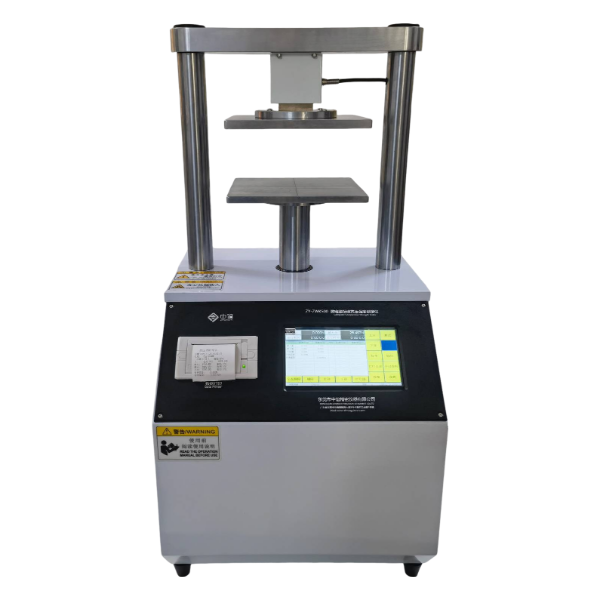

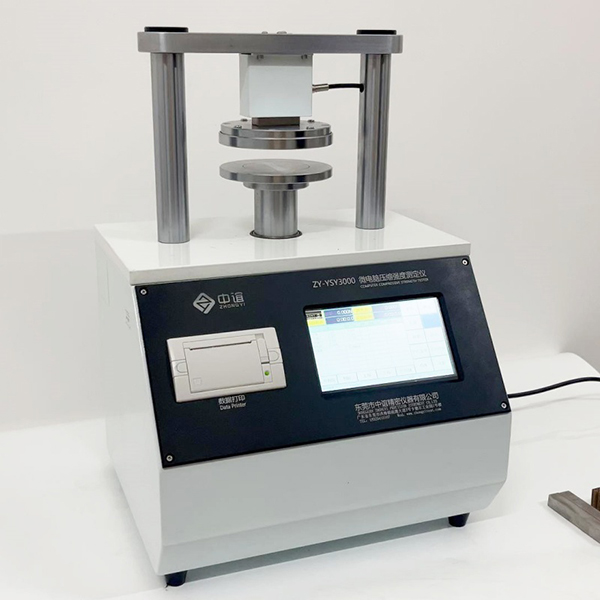

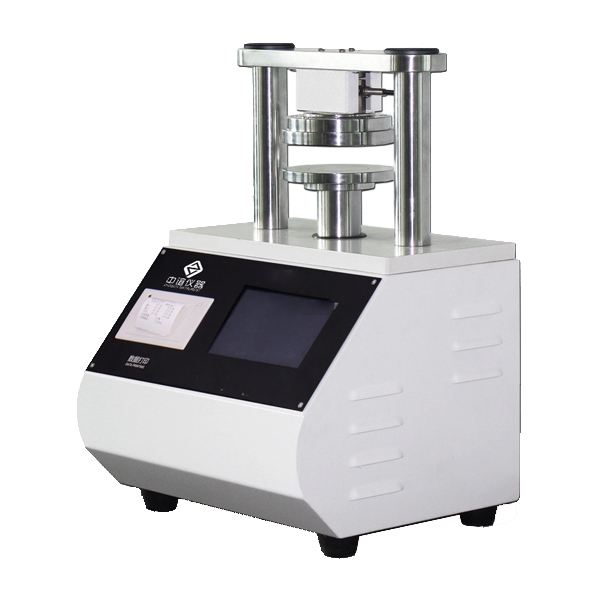

The microcomputer compression strength tester, also known as the paperboard edge compression tester, ring compression tester, compression strength tester, and electronic compression strength tester, is a conventional instrument used for carton testing. It is developed by Dongguan Zhongyi Precision Instrument Co., Ltd. (hereinafter referred to as "Dongguan Zhongyi Instrument") in accordance with national standards. This instrument is primarily used to test the physical properties of paper and corrugated paperboard, including ring compression strength (RCT), edge compression strength (ECT), flat compression strength (FCT), peel adhesion test (PAT), and core flat compression test (CMT). It is suitable for testing paper with a thickness ranging from 0.15 to 1.00mm and paper cores with a diameter less than 60mm.

working principle：

Cut a certain size of sample from the base paper along the horizontal direction, form it into a ring shape, and apply pressure to it. The compressive strength of the sample measured is the ring crush strength of the base paper, which is calculated based on the sample length and maximum compressive force.

Conforms to standards：

GB/T 2679.8 "Method for Determining the Ring Crush Resistance of Paper and Board"
GB/T 6546 Method for Determining the Edge Compression Strength of Corrugated Board
GB/T 6548 "Method for Determining the Bond Strength of Corrugated Board"
GB/T 2679.6 "Method for Determining the Flat Crushing Strength of Corrugated Medium"

Technical parameters (with curve analysis display during the detection process):

Model	ZY-YSY3000
Measuring range	5~3000N（Customizable）
Accuracy	≤±1
Test force measurement range	0.4% to 100% FS
Force accuracy	within 1 degree of accuracy
Force resolution	≤0.1mm
Deformation resolution	≤0.1mm
Test speed	12.5±1mm/min
Unit switchable	N, kgf, lbf
Test functions	RCT, ECT, FCT, PAT
Human-machine interface	7-inch LCD display, displaying curve waveform charts
Print output	Modular integrated thermal printer
Outline dimensions	380*330*550mm

Application areas of compression strength tester：

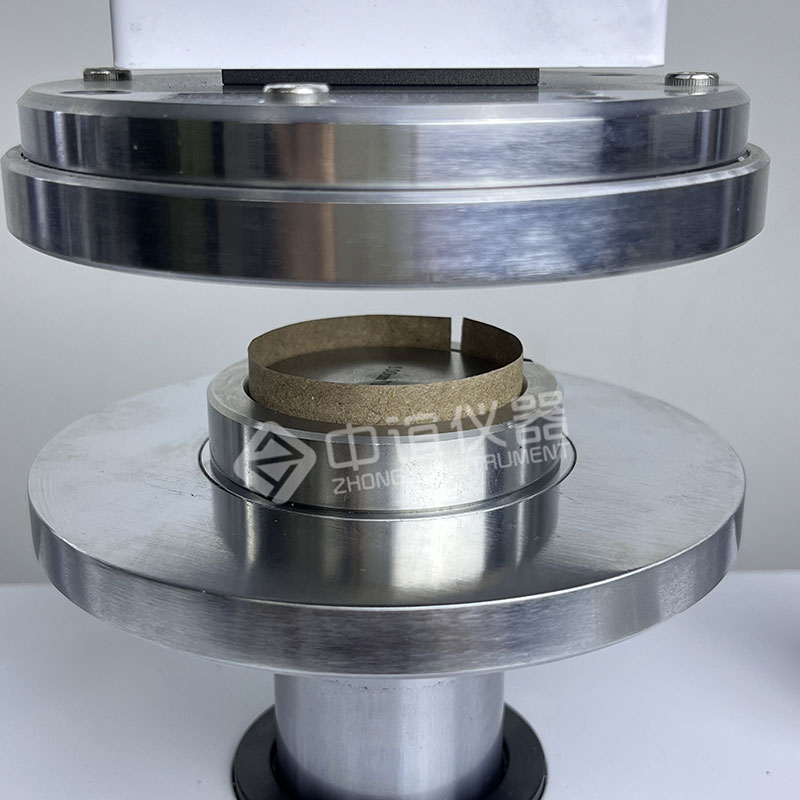

1. Ring Crush Test (RCT): Ring Crush Sampler + Center Disc: Applicable to ring crush strength testing of corrugated medium, crepe paper, and packaging printing paper.

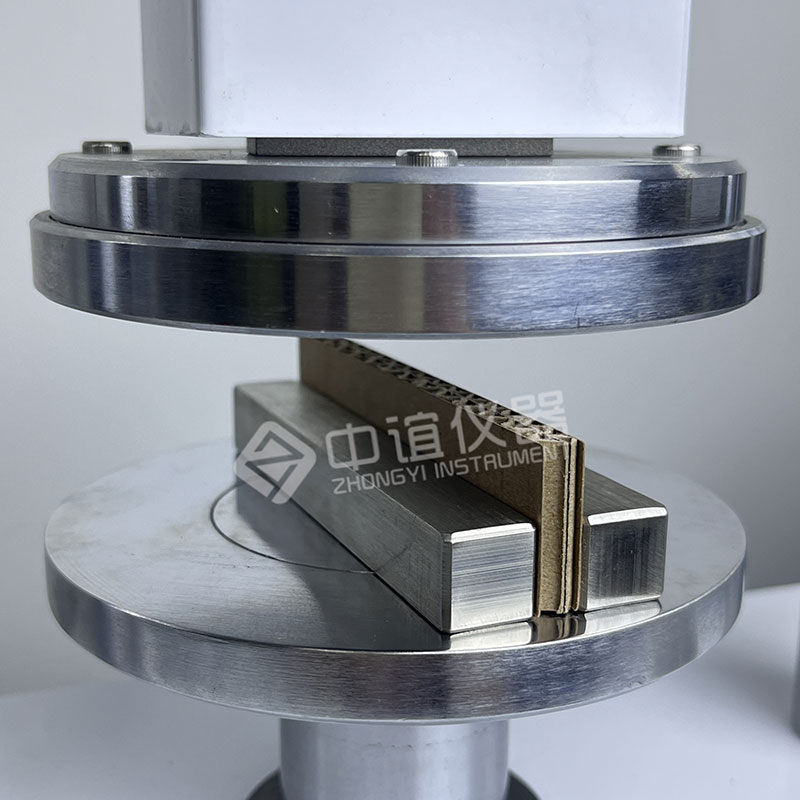

2. Edge Crush Test (ECT): Edge Crush Sampler + Guide Block: Applicable to edge crush strength testing of corrugated cardboard, containerboard, corrugated fiberboard, and other materials.

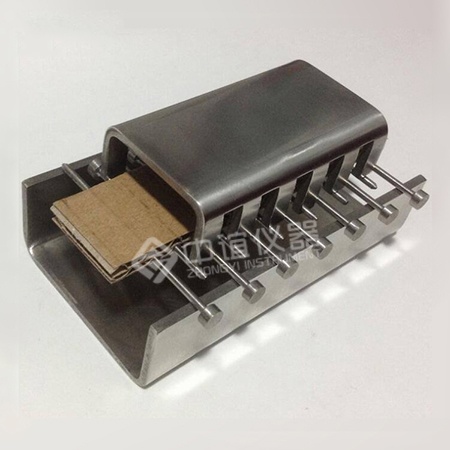

3. Peel Adhesion Test (PAT): Peel Adhesion Sampler + Fixture: Applicable to peel strength testing of corrugated board A/B/C/E fluting.

4. Flat Crush Test (FCT): Applicable to flat crush testing of corrugated paper, corrugated board, paper tube color boxes, etc.

5. CMT/CCT: Base Paper Fluting Fixture: Applicable to fluting support strength testing of base paper after fluting.

6. Ceramic Beads: Applicable to compressive strength testing of various ceramic beads, ceramics, coal, iron slag blocks, etc.

7. Ore/Coal: Applicable to compressive strength testing of block materials such as coal, iron slag blocks, etc.

8. Lamp Wick: Applicable to compressive strength testing of crystal materials such as lamp strips, lamp wicks, etc
