High-Precision Pin Adhesive Tester (PAT) for Corrugated Board

Product Overview: Adhesion Tester：

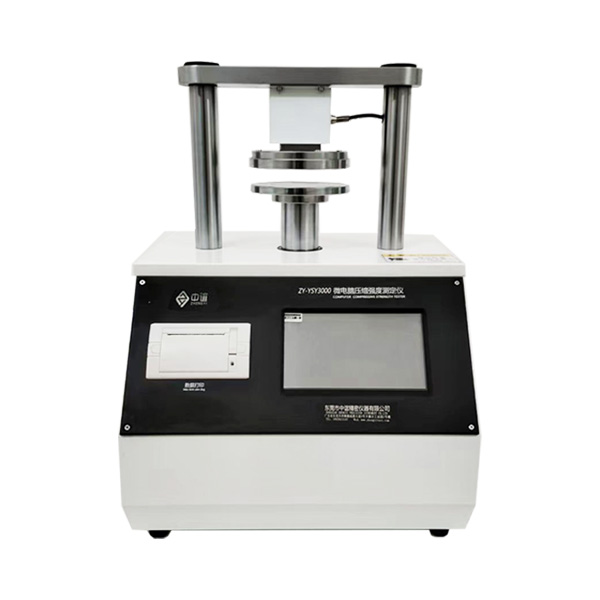

The ZY-YSY3000 Corrugated Board Adhesion Tester is a testing instrument designed to measure the physical properties of corrugated board, including its adhesive strength. It is used to assess the strength of the bond between layers of corrugated board, ensuring that cartons do not fail during transport due to delamination. Testing is conducted via peel or compression methods, with results expressed as peel force (N/15 mm) or adhesive strength (kPa).

Principle of the PAT Adhesion Test：

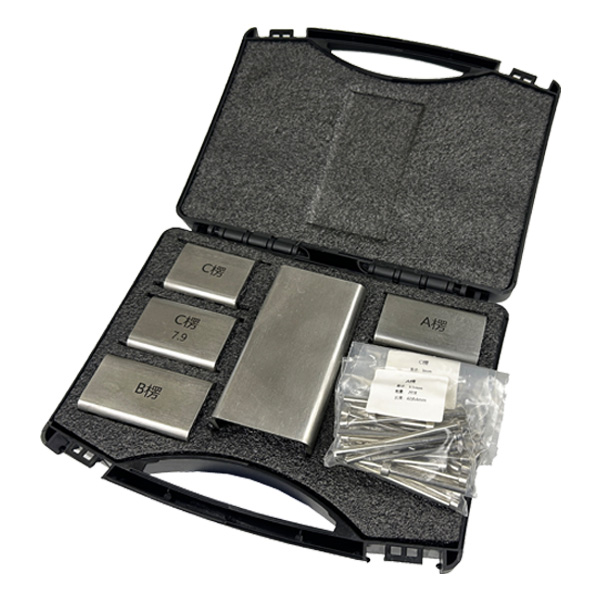

Insert a needle-type fixture (peel frame) between the fluting and the liner (or between the fluting and the intermediate layer) of the test specimen. Then, apply pressure to the needle-type peel frame with the specimen inserted to induce relative movement, and measure the maximum force required to separate the detached portion.

Standards Referenced：

GB/T 2679.8 “Determination of Ring Crush Strength of Paper and Paperboard”
GB/T 6548 “Test Method for Adhesive Strength of Corrugated Board”
GB/T 6546 “Testing Machine for Edge Crush Strength of Corrugated Board”
GB/T 2679.6 “Determination of Flat Compressive Strength of Corrugating Medium”
ISO 12192 “Determination of Compressive Strength of Paper and Paperboard”
CMT: ISO 7263, TAPPI T809;
CCT: TAPPI T843

Scope of Application：

Ring Crush Test (RCT): Suitable for testing the ring crush strength of corrugated base paper, core paper, and paper used in packaging and printing
Edge Crush Test (ECT): Suitable for testing the edge crush strength of corrugated boxes, linerboard, corrugated fiberboard, and similar materials
Adhesion Test (PAT): Suitable for testing the adhesion strength between the liner and face layers of A/B/C/E flute corrugated board
Flat Crush Test (FCT): Suitable for flat crush testing of corrugated paper, corrugated board, paper tubes, and color boxes

Why Choose Us?

As a professional testing equipment manufacturer, Zhongyi Instrument provides factory-direct technical support, one-year warranty, and lifetime maintenance. All our equipment is pre-calibrated against traceable standards before shipping to ensure immediate laboratory readiness.

Model	ZY-YSY3000
Measuring range	5~3000N（Customizable）
Accuracy	≤±1
Test force measurement range	0.4% to 100% FS
Force accuracy	within 1 degree of accuracy
Force resolution	≤0.1mm
Deformation resolution	≤0.1mm
Test speed	12.5±1mm/min
Unit switchable	N, kgf, lbf
Test functions	RCT, ECT, FCT, PAT
Human-machine interface	7-inch LCD display, displaying curve waveform charts
Print output	Modular integrated thermal printer
Outline dimensions	380330550mm

Q1: What is a Pin Adhesive Tester (PAT)?

A: A Pin Adhesive Tester (PAT) is a specialized laboratory instrument used to determine the bond strength (or stripping strength) between the fluting and the liners of corrugated fiberboard. By evaluating the adhesion quality at the glue lines, it helps manufacturers ensure that the corrugated board won't delaminate under stress during shipping or storage.

Q2: Why Test the Bond Strength of Corrugated Cardboard?

A: Adhesion strength is a critical indicator of the structural integrity of a corrugated box. Poor bonding can lead to a significant drop in Box Compression Strength (BCT) and overall durability. Regular PAT testing allows production lines to optimize adhesive application, reducing raw material waste while ensuring the finished packaging meets high-quality standards.

Q3: Which testing standards does the adhesive strength tester comply with?

A: Our Pin Adhesive Testers are engineered to strictly follow global testing standards to ensure your data is recognized worldwide, including:

GB/T 6548: Determination of adhesion strength of corrugated fiberboard.
ISO 3037: Corrugated fiberboard — Determination of edgewise crush resistance (Related methods).
TAPPI T821: Pin Adherence of Corrugated Board by Selective Separation.
TAPPI T811: Edgewise Compressive Strength of Corrugated Fiberboard.

Q4: Can the same machine perform other tests like ECT or RCT?

A: Yes! Our Automated Compression Strength Tester is a multi-functional platform. By simply switching the accessories (jigs), the same host can perform:

PAT: Pin Adhesive Test
ECT: Edge Crush Test
RCT: Ring Crush Test
FCT: Flat Crush Test This versatility saves laboratory space and reduces equipment investment costs.
