Product Introduction：

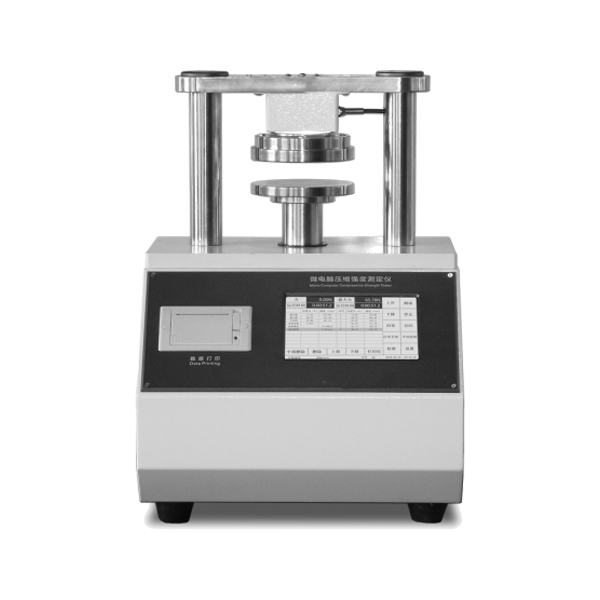

ZY-YSY3000 fully automatic compression strength tester is a comprehensive testing instrument used to test the physical properties of corrugated cardboard, such as edge compression strength (ECT), ring compression strength (RCT), flat compression strength (FCT), bonding strength (PAT), and core flat compression strength (CMT, CCT) with a diameter less than 60mm. This instrument is an ideal auxiliary testing tool for paper companies, cardboard production companies, cardboard box production companies, cardboard box use companies, and quality supervision and inspection departments.
Standard：
GB/T 2679.8 《Cardboard Ring Strength Measurement Method》
GB/T 6548 《corrugated board bonding strength measurement method》
GB/T 6546 《Corrugated Board Side Pressure Strength》
GB/T 2679.6 《corrugated core flatness strength measurement method》
Application areas of compression strength tester：
1. Ring Crush Test (RCT): Ring Crush Sampler + Center Disc: Applicable to ring crush strength testing of corrugated medium, crepe paper, and packaging printing paper.

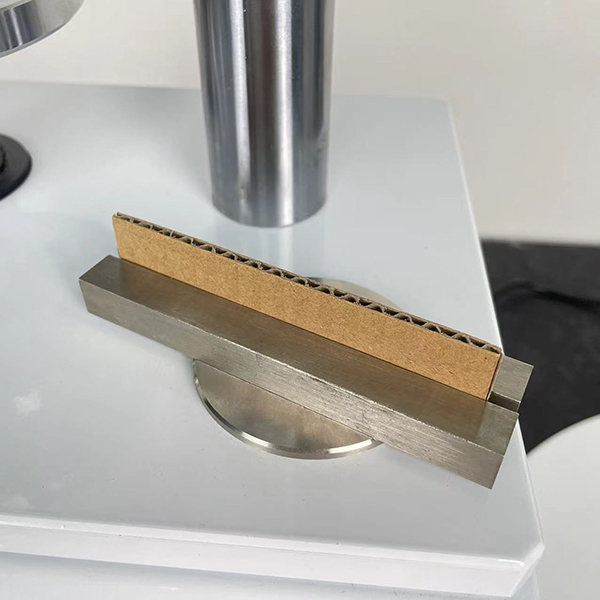

2. Edge Crush Test (ECT): Edge Crush Sampler + Guide Block: Applicable to edge crush strength testing of corrugated cardboard, containerboard, corrugated fiberboard, and other materials.
3. Peel Adhesion Test (PAT): Peel Adhesion Sampler + Fixture: Applicable to peel strength testing of corrugated board A/B/C/E fluting.
4. Flat Crush Test (FCT): Applicable to flat crush testing of corrugated paper, corrugated board, paper tube color boxes, etc.
5. CMT/CCT: Base Paper Fluting Fixture: Applicable to fluting support strength testing of base paper after fluting.
6. Ceramic Beads: Applicable to compressive strength testing of various ceramic beads, ceramics, coal, iron slag blocks, etc.
7. Ore/Coal: Applicable to compressive strength testing of block materials such as coal, iron slag blocks, etc.
8. Lamp Wick: Applicable to compressive strength testing of crystal materials such as lamp strips, lamp wicks, etc
