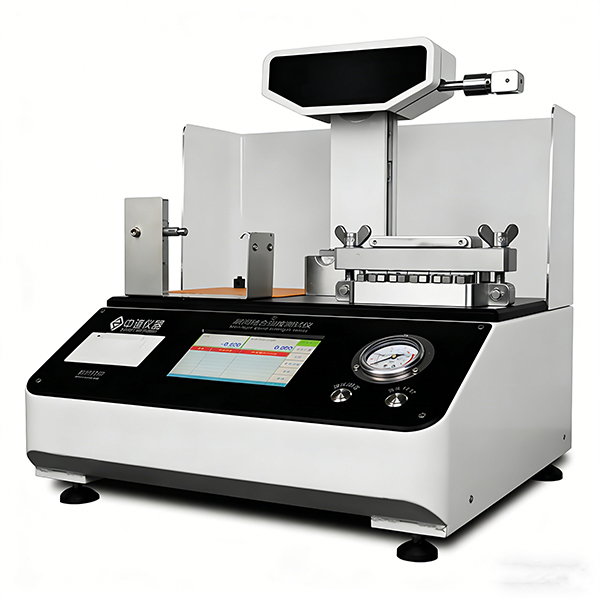

Paperboard peel strength tester

Product Overview:

ZY-CJ1000 Paperboard Anti Peel Strength Tester is a core equipment used to test the interlayer anti peel ability of layered materials such as paper and cardboard. This instrument is widely used for testing the interlayer bonding quality and performance evaluation of various types of cardboard such as paper and cardboard, box board paper, corrugated paper, grey cardboard, insulation cardboard, etc

according to the standard：

GB/T 34444 "Determination of interlaminar peel strength of paper and paperboard"
TAPPI T569 "Internal Bonding Strength - Scott Type"
ISO 16260 Paper and board Determination of Internal Adhesive Strength

working principle：

The combination of double-sided tape, sample, and double-sided tape forms a sandwich structure, which is pressed between a metal anvil and an aluminum block. The inner surface of the upper part of the aluminum block is hit with a pendulum, causing the aluminum block to flip and damage the sample in the Z direction. Calculate the energy absorbed by the sample during the destruction process by measuring the position of the swing, expressed in J/m2.

Application areas of internal bonding strength tester:

Insulation paper: testing of interlayer bonding strength of electrical paperboard and electrical insulation paperboard
Yarn tube paper: testing the interlayer bonding strength of paper tube paper, yarn tube paper, and kraft paper
Gray cardboard: testing of interlayer bonding strength of various gray cardboard, cardboard, and composite cardboard
Cardboard: testing the interlayer bonding strength of kraft paper, white paper, and whiteboard paper
Packaging box: testing of interlayer bonding strength for color boxes, cigarette boxes, and packaging boxes
Other: Testing of interlayer bonding strength for industrial paper that requires processing operations

Instrument configuration list：

Standard configuration: Host, interlayer bonding device double-sided tape, thermal printing paper, power cord, instruction manual, certificate of conformity, warranty card
Optional: interlayer combination sampler, linked computer software, communication cable, etc

Model	ZY-CJ1000
Specimen size	25.4mm×25.4mm
Sampling number	25.4×128mm, 5pcs / time
Specimen thickness	(0.1~5) mm
Impact angle	90°
Release way	Automatic release
Testing range	0~100)J/M²(A range: (0~500)J/M², B range: (500~1000)J/M²)
Indication error	A range: ±1J/M²、B range: ±2J/M²
Accuracy	0.001J/M²
Unit	J/M2, lbf/in² 、 interchange
Resolution	0.001lbf/in², 5000 pulse high precision encoder
Human-computer interface	7 inch touch screen control
Printing	Modular integrated thermal printer
Dimension	500m×400mm×650mm
Weight	≈70KG

1、What is a cardboard peel strength tester?

The cardboard peel strength tester is a core equipment used to test the interlayer peel resistance of layered materials such as paper and cardboard

2、What materials is the interlayer bonding strength tester suitable for?

This device is widely used for evaluating the interlayer anti stripping ability of layered materials such as paper, cardboard, box cardboard, corrugated cardboard, grey cardboard, insulation cardboard, copperplate paper, and yarn tube paper
